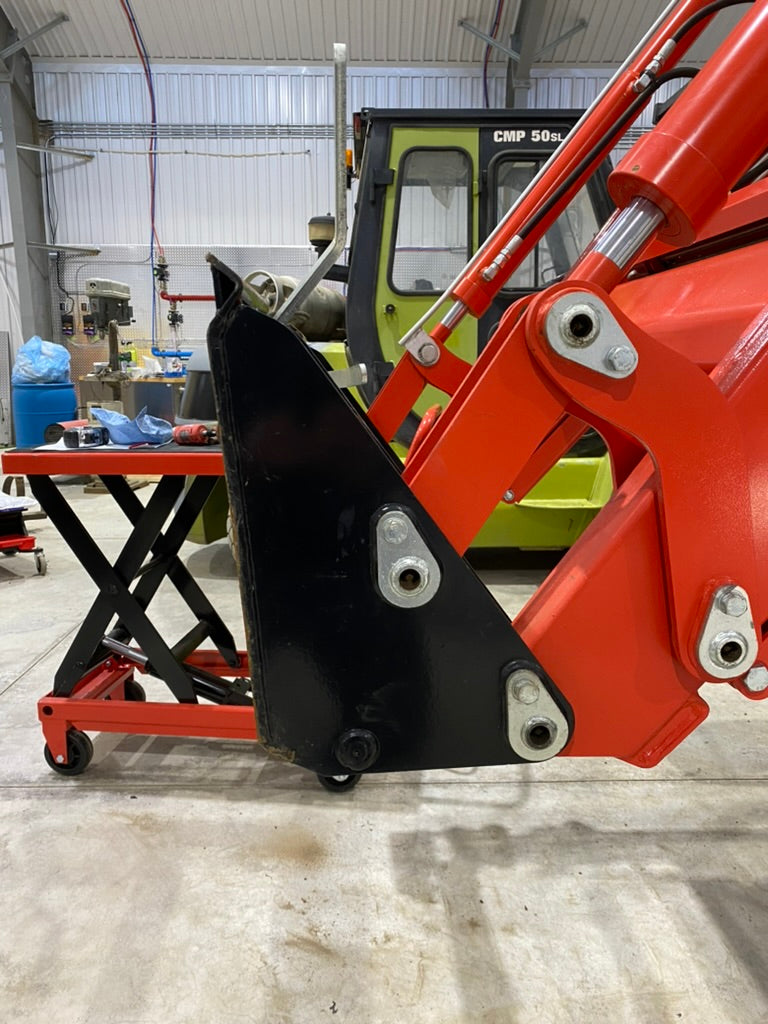

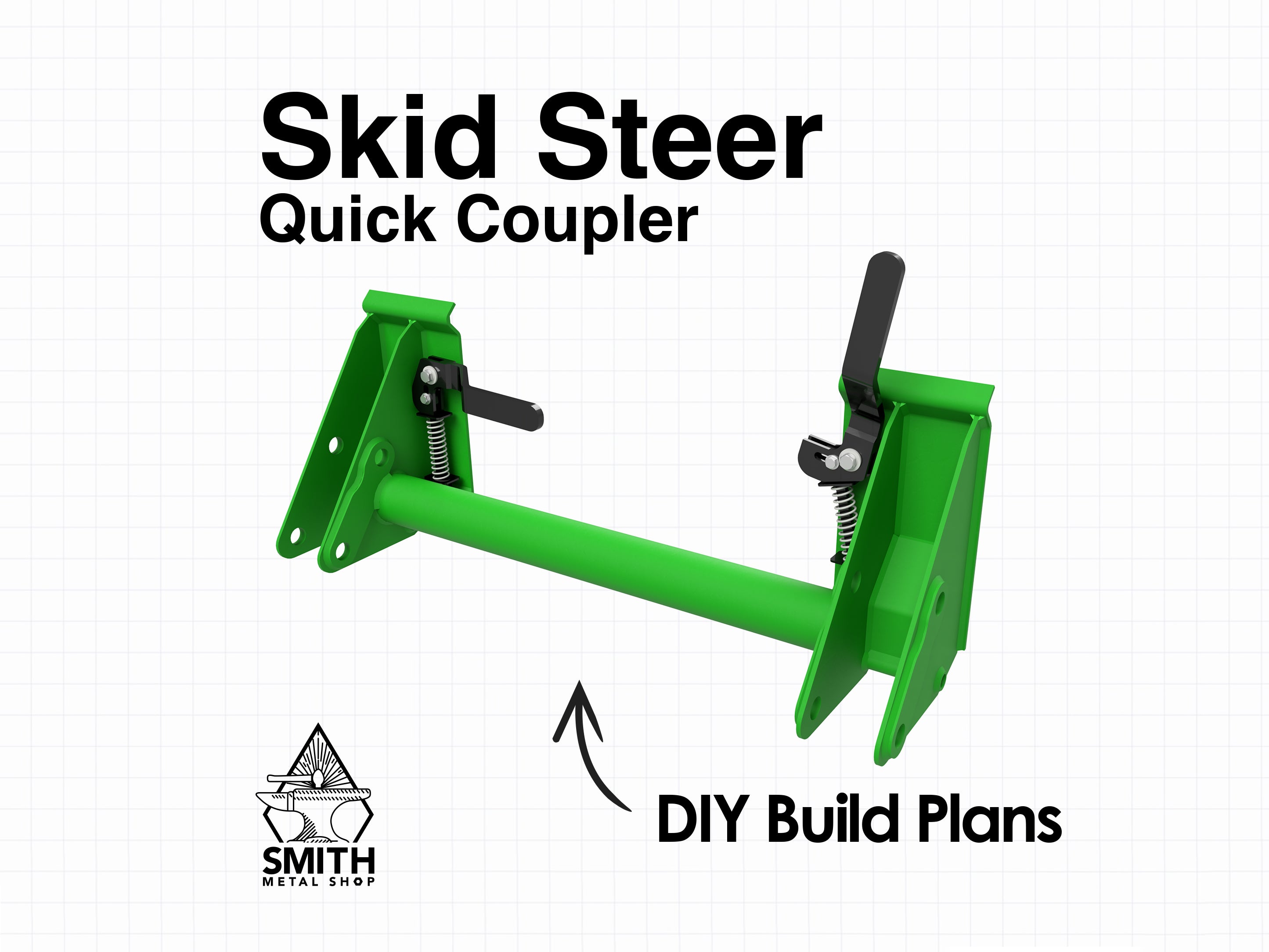

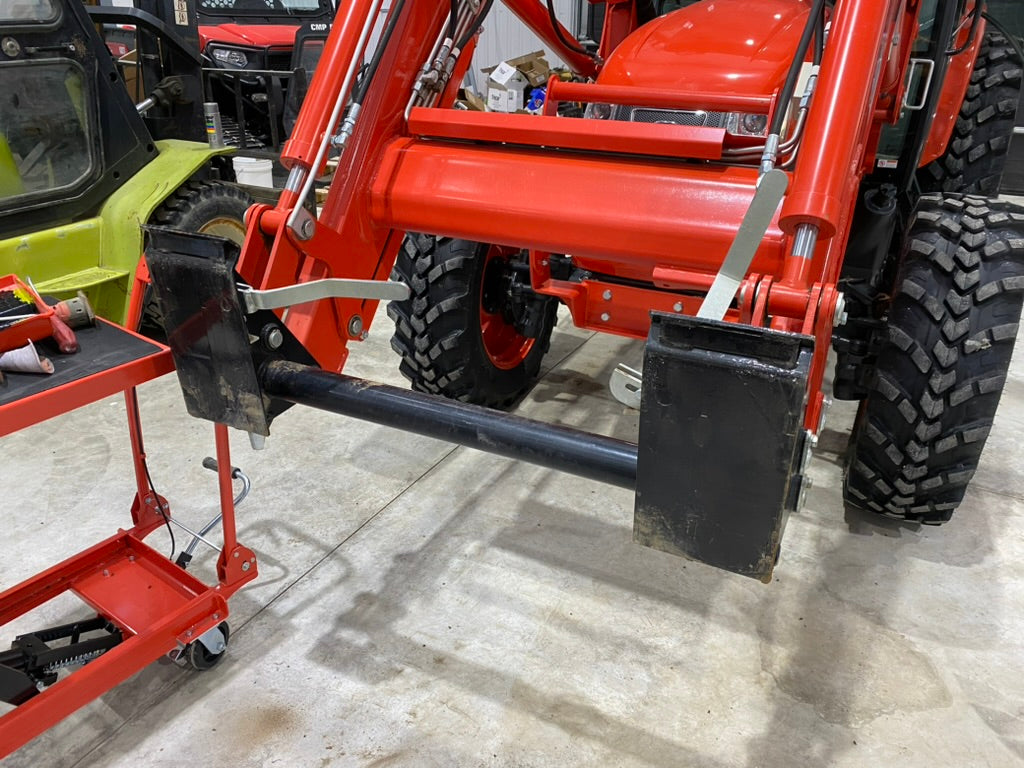

Quick Coupler for Skid Steer DIY Plans (Coupler ONLY)

Build Something Awesome with Smith Metal Shop Fabrication Plans Set

NOTE: This listing is for the equipment-side coupler ONLY.

Looking to add a quick-coupler to your skid steer or tractor? Looking to utilize the industry-standard quick attach system used on skid steers and other equipment? This plans set guides you through the fabrication of a manual quick coupler system, which can be mounted onto a variety of equipment and used with standard quick coupler attachments. This project includes a full set of professional fabrication drawings and DXF flat patterns, guiding you through every step of the process.

Please note that the pin sizing and dimensions may change for your specific machine, and modifications may be required to make the plans suit your needs.

What Sets Smith Metal Shop Plans Apart:

• Attention to Detail: Backed by decades of experience in metalworking and design, our plans are engineered with precision and care.
• Tested and Trusted: Every project we design is built and tested before release to ensure clarity, completeness, and quality in the instructions.
• Support in Your Project Every Step of the Way: We're here to answer your questions and provide assistance throughout your build.

Key Features of the Quick Coupler System:

• Designed to fit the universal quick attach system used on most skid steers and tractors based on SAE J2513 guidelines.
• Heavy-duty steel construction using 1/4", 3/8" and 1/2" steel plate
• Most components are cut using CNC plasma or laser and then welded together using the process and electrode of your choice. Some forming using a press brake is also required to complete the project.

What’s Included:

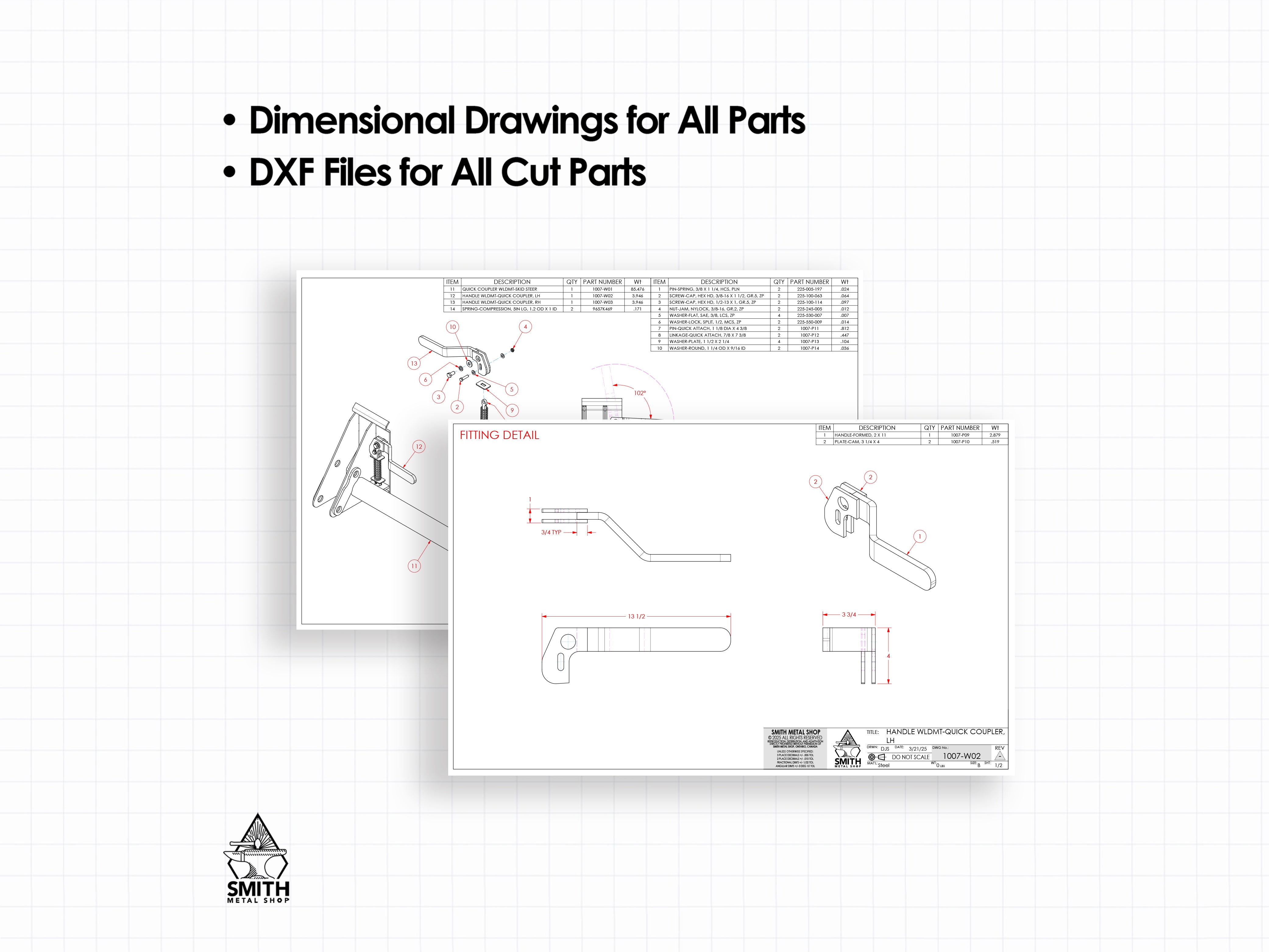

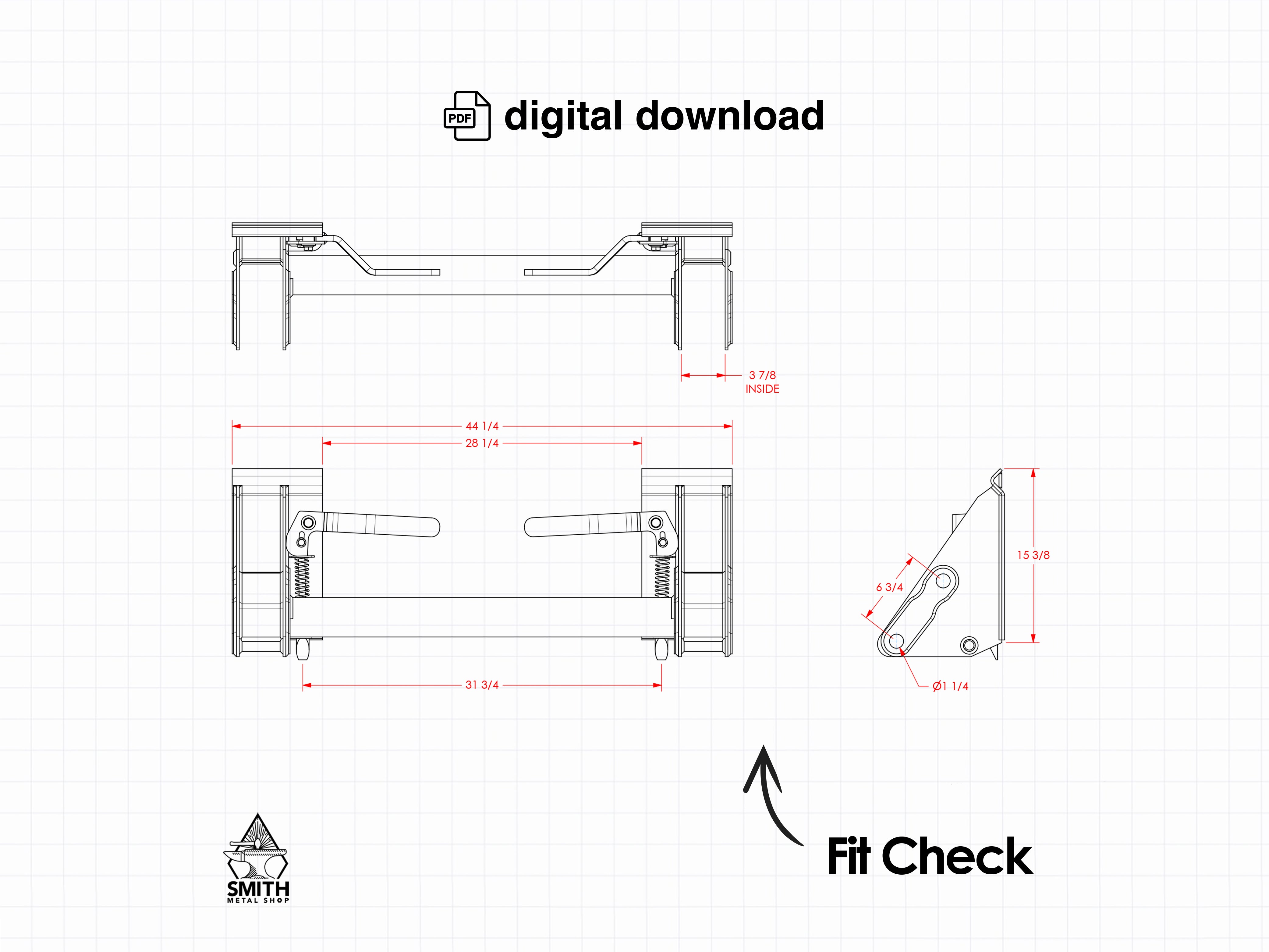

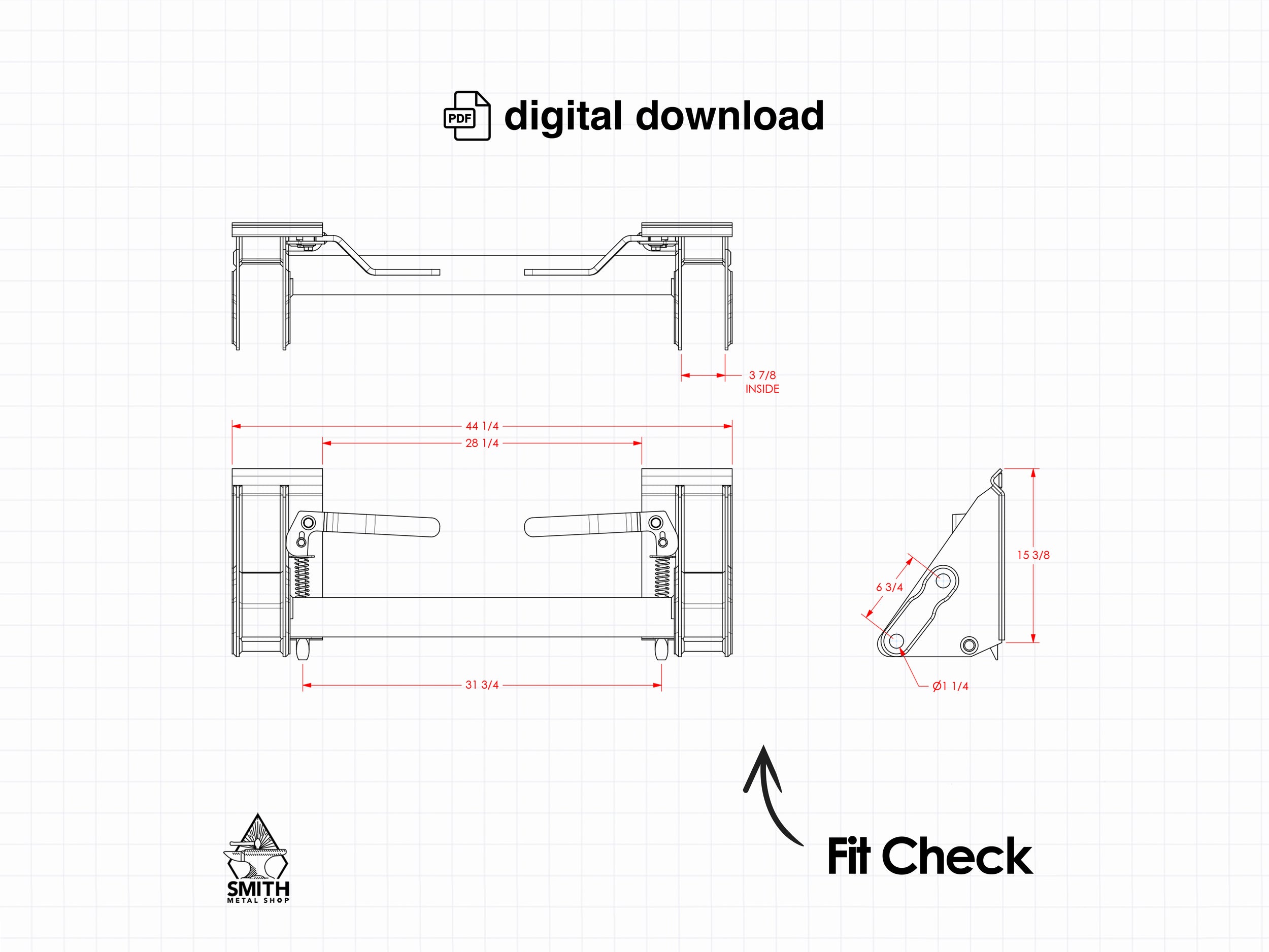

• Full .pdf drawings package for all parts, weldments, and assemblies.
• Flat pattern cutting files for all parts in .dxf format.

Upon purchase, you'll receive a link to download the digital file instantly. No shipping, no waiting – start working on your project right away!

License & Terms of Use:

• Non-Commercial Use Only: These plans are provided exclusively for personal projects.
• Commercial Licensing: Interested in using these plans commercially? Contact us at david@smithmetalshop.com for licensing options.

Invest in Quality You Can Build Yourself.

Whether you're a seasoned fabricator or new to metalworking, Smith Metal Shop’s plans are your key to a superior workbench at a fraction of the cost. Ready to get started? Add these plans to your cart and bring your vision to life today!

Note: This listing is for a digital download only – no physical product will be shipped.
