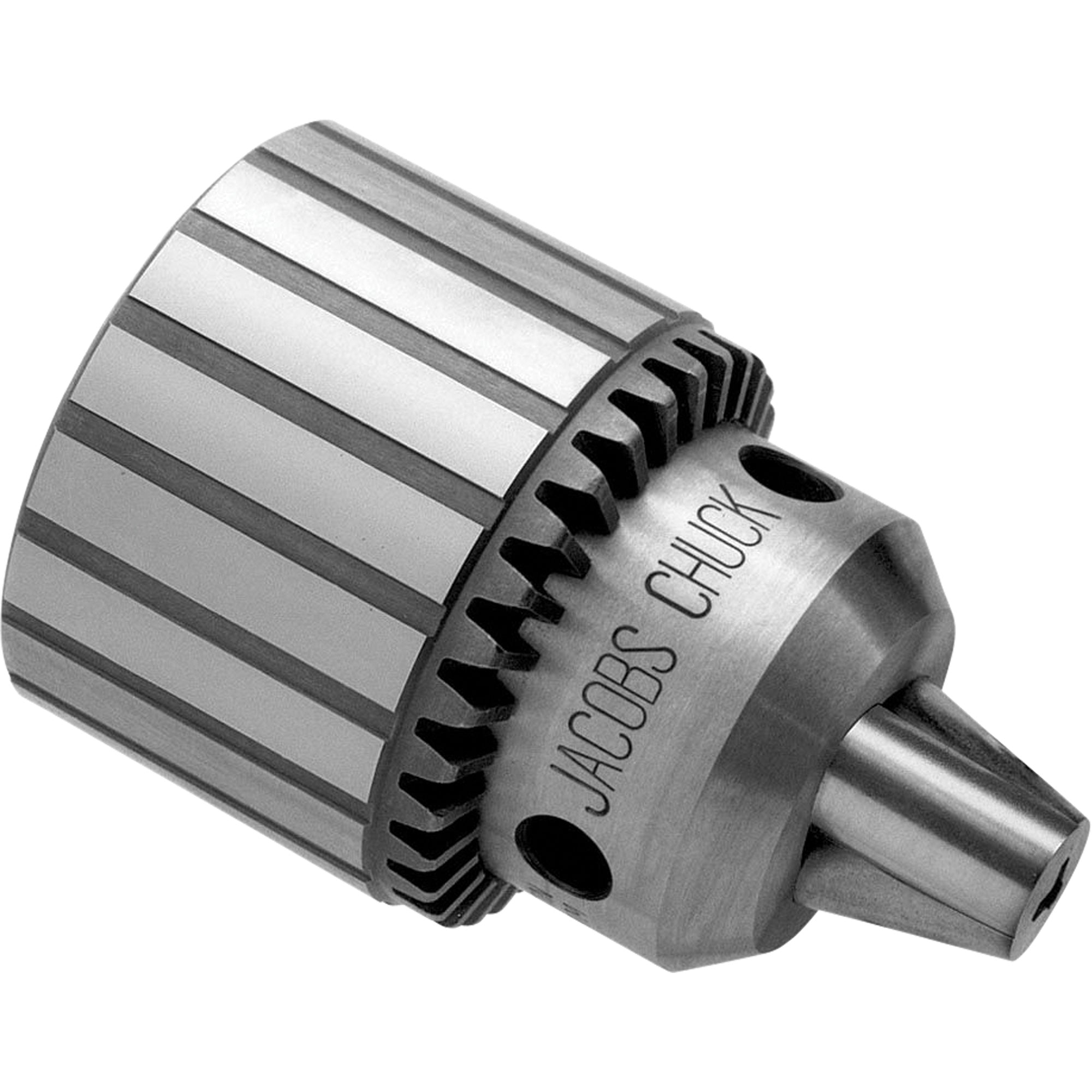

The Jacobs 6204D Plain Bearing Drill Chuck delivers precision and reliability in a compact form. With a capacity range of 0.0135" to 0.156" (up to 5/32"), this chuck is designed for fine drilling applications that demand accuracy. The 5/16"-24 taper shank ensures a secure fit, while the plain bearing style offers smooth operation in lighter-duty applications. Ideal for machinists, toolmakers, and repair technicians, the Jacobs 6204D is a trusted solution for holding small drill bits in precision setups. Built by APEX Tools under the Jacobs brand and sought-after for its proven performance in workshop and industrial settings.
Specifications
| Specification |
Value |
| Brand |
Jacobs |
| Manufacturer |
APEX Tools |
| Manufacturer Part No. |
6204D |
| Type |
Taper Shank Drill Chuck |
| Style |
Plain Bearing |
| Taper Type |
5/16"-24 |
| Chuck Size |
5/32" |
| Chuck Capacity |
0.0135" – 0.156" |
| Body Diameter (Workpiece Side) |
0.85 in |
| Clamping Length |
0.0135 – 0.156 in |
| Overall Length |
1.5 in |
| System of Measurement |
Inch |
| UNSPSC |
27112807 |
| Weight |
0.18 lb |
| Unit of Measure |
Each |
