Fastenal

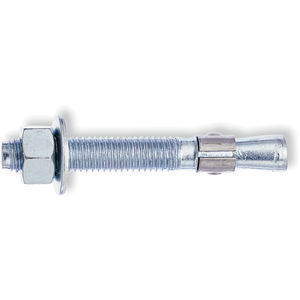

Wedge Anchor – 1" x 9", Steel, Zinc-Plated (FF-S-325, Grade 2)
Regular price
$43.27 CAD
Regular price
Sale price
$43.27 CAD
Unit price
/
per
Couldn't load pickup availability
Share
This 1" x 9" wedge anchor features a versatile fully threaded design and a one-piece stainless steel expander clip for improved corrosion resistance. It is non bottom-bearing and suitable for hole depths exceeding the anchor length. Installation can be done through the work fixture, eliminating the need for hole spotting. Torque values are inspectable to confirm proper installation. Meets or exceeds U.S. Government G.S.A. Specification A-A-1923A Type 4. Zinc-plated finish helps reduce corrosion in standard atmospheric conditions.
| Specification | Value |
|---|---|
| Diameter | 1″ |
| Length | 9″ |
| Material | Steel |
| Grade | 2 |
| Minimum Embedment | 4-1/2″ |
| ICC Approved for Uncracked Concrete | Yes |
| ICC Approved for Cracked Concrete | No |
| Seismic Approved | No |
| Thread Length | 2-1/2″ |
| Type | Wedge Anchor |
| Specification | FF-S-325: Group II, Type 4, Class 1 |
| Finish | Zinc |
| Application | Anchoring Machinery and Conveyors, Steel Racking |
| Product Weight | 11.209 lb |
| Unit of Measure (UOM) | Each |
