Build Your Own Heavy-Duty Container Ramp – DIY Metalworking Plans Set

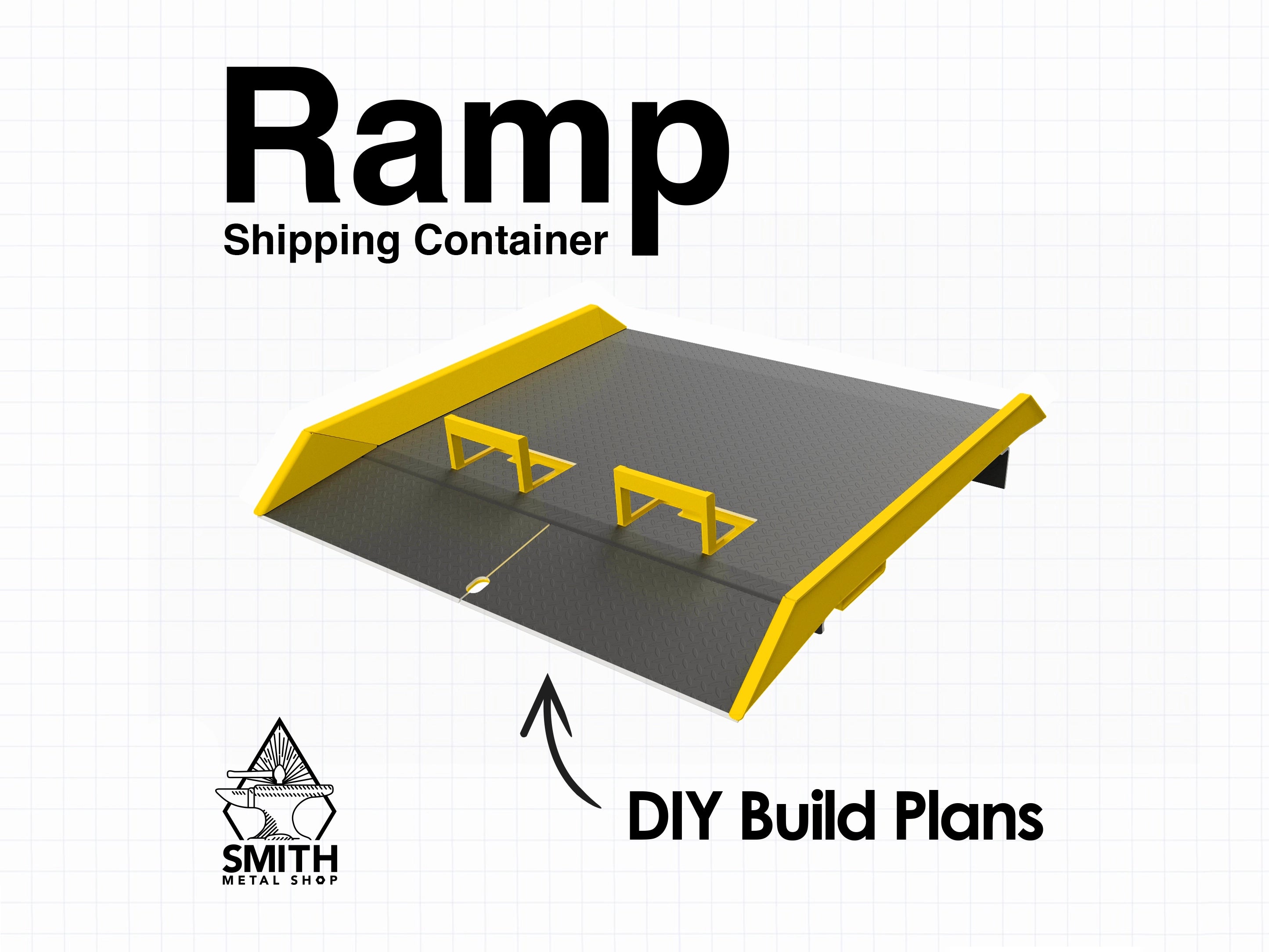

Safely load and unload shipping containers using forklifts at ground level with this professional-grade fabrication project. Designed for real-world use in shops, yards, and logistics operations, the Smith Metal Shop Container Ramp Plan Set guides you through building a rugged 20,000-lb capacity ramp from heavy-duty welded steel. You’ll Build a 72” × 72” container ramp featuring:
-
Forklift maneuverability – flip-up loops for easy positioning and transport using forklifts.
-
Nonslip diamond-plate surface – excellent traction for forklift tires.
-
Side safety curbs – prevent runoffs and improve alignment.
-
Reinforced 3/8" thick deck – fully welded and reinforced with bracing along bottom.
-
All-welded steel construction – engineered for decades of service.
Why Build It Yourself:
Commercial container ramps can cost thousands. This plan set lets you build a heavy-duty alternative at a fraction of the price, using common steel sizes and straightforward fabrication steps. Perfect for metalworkers looking to expand their skills or equip their shop with professional-grade infrastructure.
What’s Included:

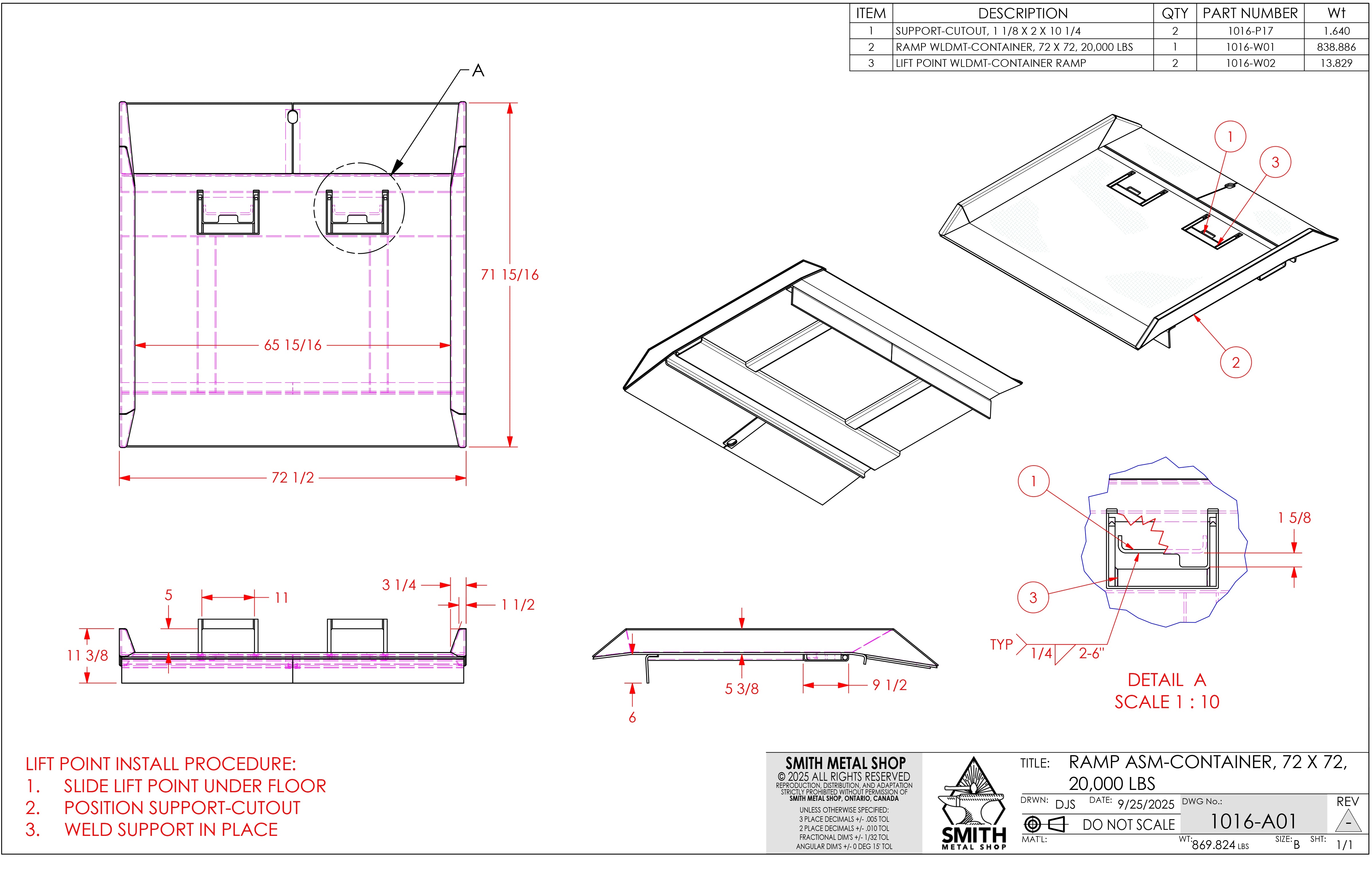

- Fully detailed PDF shop drawings detailing all build details.
- Full .DXF file package for laser or plasma cutting all flat patterns.
- Bill of materials, cut lists, and weldment details.
- Expert fabrication notes for welding, reinforcement, and finishing.
License & Terms of Use:
Personal use only. For commercial fabrication licensing, contact david@smithmetalshop.com
Invest in Tools That Build Capability.
Whether you’re a shop owner, fabricator, or metalworking enthusiast, this ramp project delivers industrial performance you can build yourself. Add these plans to your cart and start fabricating today.
Note: This listing is for a digital download only – no physical product will be shipped.
