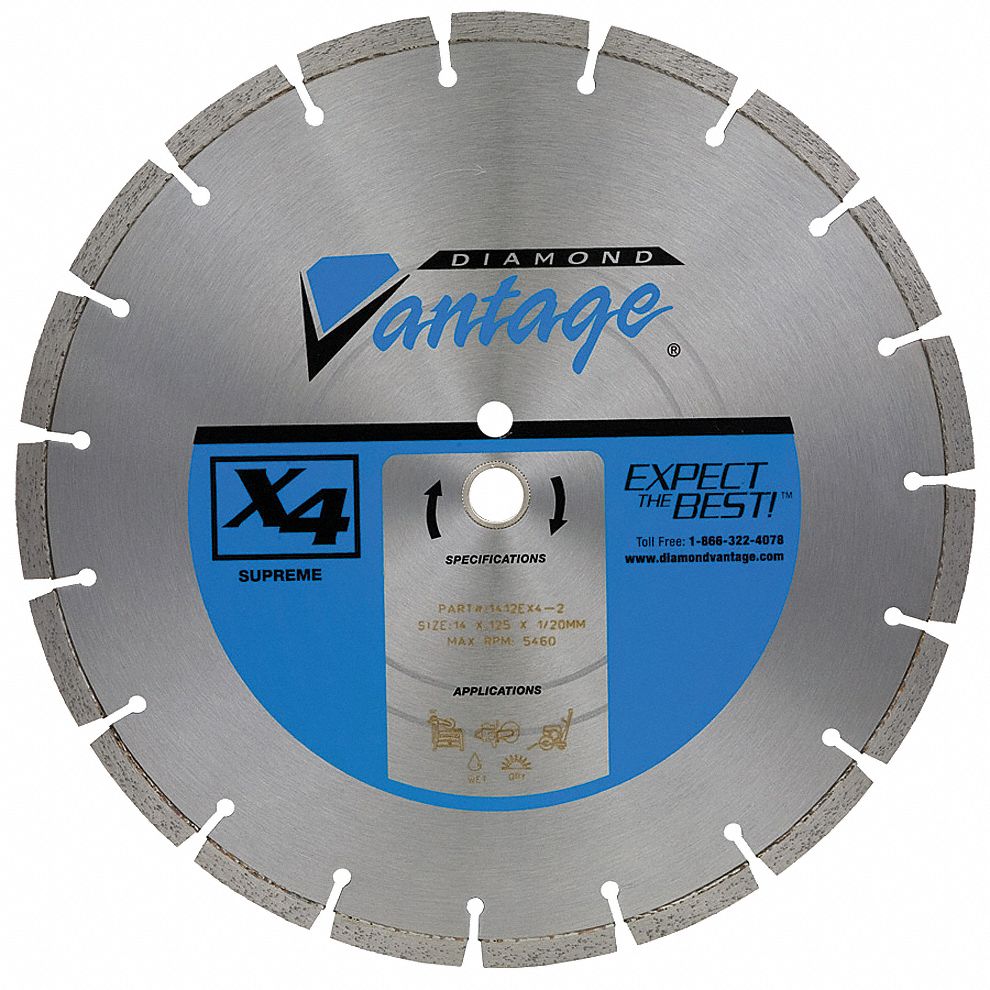

The Diamond Vantage 14" Asphalt Diamond Saw Blade (1412EX4-4) is engineered for maximum performance in asphalt cutting, featuring a segmented rim with drop-segment undercut protection and a supreme X4 hard bond for the fastest cutting speed and longest blade life. Built with a 0.125" thickness, 1" / 20mm arbor hole, and 0.400" segment height with 0.335" diamond depth, this laser-welded blade handles both wet and dry cutting applications with ease. Rated for 5,400 RPM, it is ideal for high-speed gas saws, chop/masonry saws, and 13–35 HP walk-behind saws in heavy-duty asphalt cutting environments.
Specifications
| Specification |
Value |
| Manufacturer |
Diamond Vantage |
| Part No. |
1412EX4-4 |
| Type |
Diamond Saw Blade |
| Blade Diameter |
14 in |
| Blade Thickness |
0.125 in |
| Arbor Hole Size |
1 in / 20 mm |
| Blade Style |
Segmented Rim |
| Cutting Condition |
Wet / Dry |
| Bond Type |
Hard (Supreme X4 grade) |
| Primary Use |
Asphalt |
| Segment Height |
0.400 in |
| Diamond Depth |
0.335 in |
| Weld Type |
Laser Welded |
| Operating Speed |
5,400 RPM |
| Weight |
5 lb |
| Unit of Measure |
Each |
